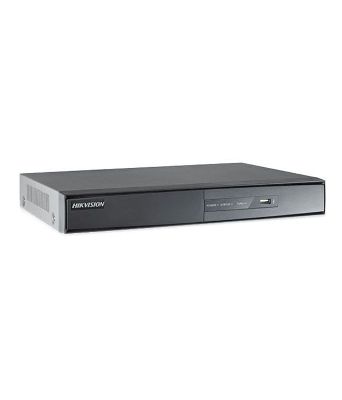

Secure your home or business with the Hikvision DS-7204HGHI-K1, a powerful and cost-effective 4-channel Turbo HD DVR that supports multiple signal types. Compatible with HDTVI, AHD, CVI, CVBS, and IP cameras, it offers flexible installation and excellent recording quality at up to 1080p Lite resolution.
Designed with a full metal casing for durability, this DVR features a single SATA interface supporting up to 6TB HDD storage and dual-stream recording for efficient bandwidth usage. It’s ideal for small to medium-scale surveillance setups.
Key Features:
- 4-Channel Hybrid DVR – Supports HDTVI, AHD, CVI, CVBS, and IP
- Encoding Up to 1080p Lite @ 25/30fps
- Connect Up to 5 Network Cameras
- H.264+ / H.264 Video Compression – Efficient storage
- Durable Metal Build – Long-lasting performance
- Single SATA Interface – Supports HDD up to 6TB
- Dual Video Outputs: HDMI & VGA
- Hik-Connect Enabled – Remote viewing support
Product Specifications:
- Model: DS-7204HGHI-K1
- Video Inputs: 4-ch (analog) + up to 5 IP cameras
- Video Compression: H.264+ / H.264
- Video Bit Rate: 32 Kbps to 4 Mbps
- Audio Compression: G.711u
- Stream Types: Video / Video & Audio
- Video Outputs: 1 HDMI, 1 VGA
- Max Output Resolution: 1920 × 1080 @ 60Hz
- Storage: 1 × SATA Interface, up to 6 TB
- USB Ports: 2 × USB 2.0
- Network Interface: 1 × RJ45 10/100 Mbps Ethernet
- Power Supply: 12 VDC
- Power Consumption: ≤ 8W (no HDD)
- Operating Temp: -10°C to 55°C
- Humidity: 10% to 90%
- Dimensions: 260 × 222 × 45 mm
- Weight: Lightweight and compact
Best For:
- Small offices, homes, or retail spaces
- Users needing a reliable and budget-friendly DVR
- Surveillance systems combining analog and IP cameras
Note: This model is an upgrade of the DS-7204HGHI-F1, delivering improved flexibility and performance at the same value.
